Project description

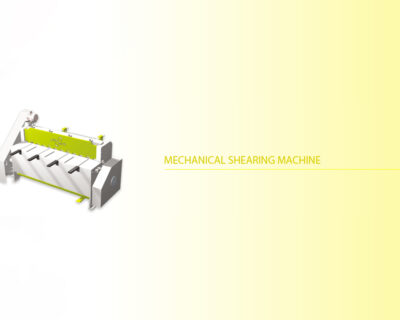

‘ANASUYA’ presents to you a range of most technically advanced Mechanical shearing machines with all latest features as per international standards.
- The frame is steel-welded construction, vibrating to eliminate stress, with high strength and good rigidity.
- Hydraulic driven and returning stroke is activated by the accumulator or nitrogen cylinder smoothly and promptly.
- The sheet is moved easily through rolling ball equipped on worktable and protect the surface of sheet plate.
- Closed loop control system is composed of NC controller and the encoder. It has the automatic function of inspection and compensation.
- The back gauge driven by servo motor adopts rolling ball screw, rolling guiding way, so it’s positioning precision could reach 0.10mm.
- There is a display to count the number of cutting, the stroke of beam could be adjusted stepless.
- The clearance of blades could be adjusted by hand Lever l, the value adjusted is display on the indicating plate.
- Full machine is guarded with safety guard with interlocker to prevent the operator from injured.
Standard Accessories
- Main Drive Motor
- Electric Control Panel
- NC back gauge with ball screw
- Operational Console.
- Lever operated blade clearance with calibration
- Front sheet support
- Hardened transfer bar mounted on table
- Hold down cylinders
- Four edge HCHCR / HCSR blade Interchangeable & suitable to shear mild and St. Steel
Optional Accessories
- Second squaring arm on left side
- Front support with roller according to required length
- Rear sheet support
- Ball transfer table
- Degree protector for angular cutting
- Stroke counter
- Design with throat depth
- First fill of hydraulic oil
Machine Configuration
| Stroke Per Min | ||||||||||||||
| Mild Steel | Saint less Steel | |||||||||||||
| SR NO. | Cutting | Max. rake | Nominal | Max. rake | Nominal rake | Rakeangle | Min. | Max. | No. of | Holding | Power H.P. | Packing | Approx. | |
| Length (MM) | Shearing Capacity Thickness (mm) | Angle | rake | angle | angle | range | Rake angle | rake angle | Hold downs | Force Kgs | Dimension | Weight Kgs. | ||
| L x W x H | ||||||||||||||
| 1 | 2500 | 3.15 | 4 | 2 | 3 | 1degree 15′ | 0.5-2 degree | 28 | 13 | 13 | 2500 | 5 | 3200x1850x1950 | 3500 |
| 2 | 3000 | 3.15 | 4 | 2 | 3 | 1degree 15′ | 0.5-2 degree | 24 | 9 | 15 | 2500 | 5 | 3700x1850x1950 | 4000 |
| 3 | 1250 | 4 | 6 | 3 | 4 | 1degree 37′ | 0.5-3 degree | 33 | 17 | 5 | 4000 | 5 | 2000x1550x2050 | 2700 |
| 4 | 1500 | 4 | 6 | 3 | 4 | 1degree 37′ | 0.5-3 degree | 30 | 15 | 8 | 4500 | 5 | 2250x1850x2050 | 3200 |
| 5 | 2000 | 4 | 6 | 3 | 4 | 1degree 37′ | 0.5-3 degree | 28 | 13 | 11 | 6200 | 7.5 | 2750x1850x2050 | 3500 |
| 6 | 2500 | 4 | 6 | 3 | 4 | 1degree 37′ | 0.5-3 degree | 26 | 8 | 13 | 8000 | 7.5 | 3300x2250x2400 | 5000 |
| 7 | 3000 | 4 | 6 | 3 | 4 | 1degree 37′ | 0.5-3 degree | 24 | 6 | 15 | 10000 | 10 | 3700x2250x2400 | 6000 |
| 8 | 4000 | 4 | 6 | 3 | 4 | 1degree 45′ | 0.5-3 degree | 22 | 6 | 20 | 12000 | 10 | 4500x2250x2400 | 8100 |
| 9 | 1500 | 6 | 8 | 4 | 6 | 1degree 45′ | 0.5-3 degree | 24 | 8 | 8 | 6500 | 10 | 2250x1900x2100 | 4000 |
| 10 | 2000 | 6 | 8 | 4 | 6 | 1degree 45′ | 0.5-3 degree | 22 | 7 | 11 | 6500 | 10 | 2750x1900x2100 | 4300 |
| 11 | 2500 | 6 | 8 | 4 | 6 | 1degree 45′ | 0.5-3 degree | 28 | 8 | 13 | 8500 | 15 | 3300x2250x2500 | 6000 |
| 12 | 3000 | 6 | 8 | 4 | 6 | 1degree 45′ | 0.5-3 degree | 24 | 6 | 15 | 10800 | 15 | 3800x2250x2500 | 6500 |
| 13 | 4000 | 6 | 8 | 4 | 6 | 2degree | 0.5-3 degree | 24 | 6 | 20 | 13600 | 20 | 4800x2250x2500 | 8200 |
| 14 | 1500 | 8 | 10 | 6 | 8 | 2degree | 0.5-3 degree | 22 | 10 | 8 | 10500 | 15 | 2250x2050x2200 | 5200 |
| 15 | 2000 | 8 | 10 | 6 | 8 | 2 degree | 0.5-3 degree | 18 | 8 | 11 | 12000 | 15 | 2750x2050x2200 | 6000 |
| 16 | 2500 | 8 | 10 | 6 | 8 | 2 degree | 0.5-3 degree | 24 | 8 | 13 | 16500 | 20 | 3300x2350x2600 | 7500 |
| 17 | 3000 | 8 | 10 | 6 | 8 | 2 degree | 0.5-3 degree | 20 | 6 | 15 | 18500 | 20 | 3800x2350x2600 | 9000 |
| 18 | 4000 | 8 | 10 | 6 | 8 | 2 degree | 0.5-3 degree | 20 | 8 | 20 | 23000 | 25 | 4800x2350x2600 | 12500 |
| 19 | 1500 | 10 | 13 | 8 | 10 | 2 degree | 0.5-3 degree | 20 | 10 | 8 | 10500 | 15 | 2250x2050x2300 | 6000 |
| 20 | 2500 | 10 | 13 | 8 | 10 | 2 degree | 0.5-3 degree | 24 | 8 | 13 | 17500 | 20 | 3300x2500x2800 | 9000 |
| 21 | 3000 | 10 | 13 | 8 | 10 | 2 degree | 0.5-3 degree | 20 | 6 | 15 | 20000 | 20 | 3800x2500x2800 | 11500 |
| 22 | 4000 | 10 | 13 | 8 | 10 | 2 degree | 0.5-3 degree | 18 | 6 | 20 | 25000 | 30 | 4800x2500x2800 | 15000 |
| 23 | 2500 | 13 | 16 | 10 | 13 | 2 degree | 0.5-3 degree | 15 | 10 | 13 | 32000 | 25 | 3350x2600x2800 | 9000 |
| 24 | 3000 | 13 | 16 | 10 | 13 | 2 degree | 0.5-3 degree | 12 | 6 | 15 | 37000 | 25 | 3800x2600x2800 | 12000 |
| 25 | 4000 | 13 | 16 | 10 | 13 | 2 degree | 0.5-3 degree | 10 | 4 | 20 | 22000 | 30 | 4850x2200x2800 | 15500 |
| 26 | 2000 | 16 | 20 | 13 | 16 | 2 degree | 0.5-3 degree | 13 | 7 | 11 | 22000 | 25 | 2750x2200x2600 | 12000 |
| 27 | 2500 | 16 | 20 | 13 | 16 | 2 degree | 0.5-3 degree | 15 | 8 | 13 | 40000 | 30 | 3500x2600x2900 | 15000 |
| 28 | 3000 | 16 | 20 | 13 | 16 | 2 degree | 0.5-3 degree | 12 | 6 | 16 | 43500 | 30 | 4000x2600x2900 | 17000 |
| 29 | 4000 | 16 | 20 | 13 | 16 | 2 degree | 0.5-3 degree | 10 | 4 | 20 | 30000 | 30 | 5100x2750x2900 | 20000 |
| 30 | 2500 | 20 | 25 | 16 | 20 | 2 degree | 0.5-3 degree | 15 | 8 | 13 | 48000 | 40 | 3500x2750x3000 | 18000 |
| 31 | 3000 | 20 | 25 | 16 | 20 | 2 degree | 0.5-3 degree | 12 | 6 | 16 | 52000 | 40 | 4000x2750x3000 | 20000 |
| 32 | 4000 | 20 | 25 | 16 | 20 | 2 degree | 0.5-3 degree | 10 | 4 | 20 | 30000 | 50 | 5100x2800x3000 | 24000 |
