Project description

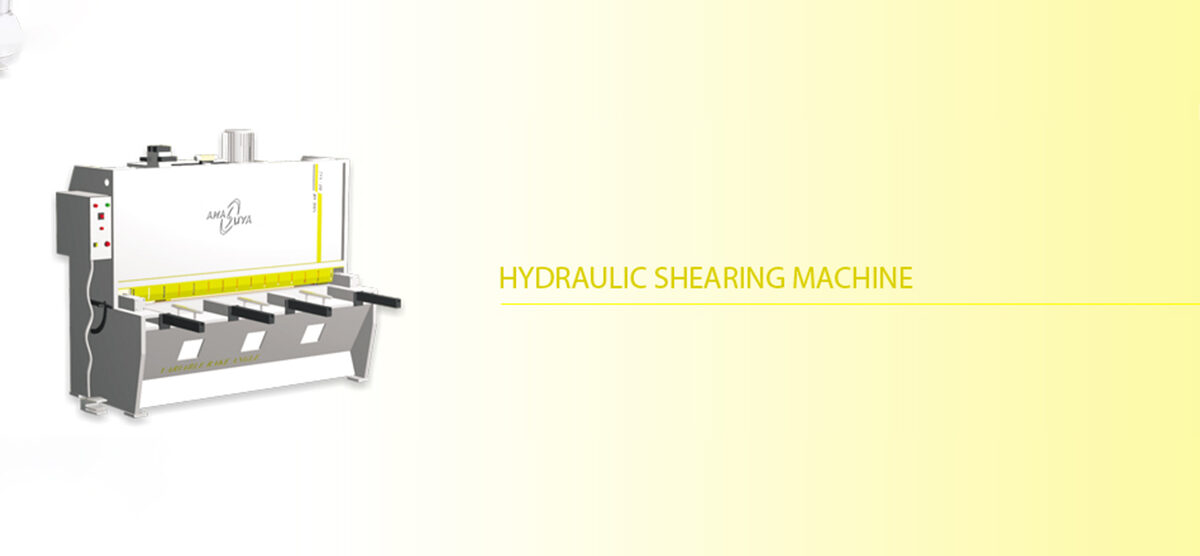

‘ANASUYA’ presents to you a range of most technically advanced hydraulic shearing machines with all latest features as per international standards.
Salient Features
- The stable robust, all welded steel frame from ultra sonically tested plates are of top quality. Raw & table designed with special inclined member & box type structure for maximum strength.
- The top beam is guided by three point roller with replaceable hardened liners for least wear. This eliminates lubrication of steel to provide better quality of cutting for a longer time.
- Rake angle can be varied to permit shearing of higher thickness than nominal capacity & facilitating distortion free shearing of thin sheets.
- The fastest & easiest way of blade clearance setting without need of feeler gauge, which helps burr-free edges.
- Positive holding by hydraulic hold downs before shearing avoids slippage of sheets & independent operation of hold downs for clamping of sheet helps checking of mark without taking shear stroke.
- Front gauging by dis appearing stoppers mounted on left squaring arm. Robust, heavy & accurate back gauging to set cutting width.
- Hydraulic cylinder are designed with both low & high pressure sealing, hard chrome plated rod also with special type guide for long life without leakage.
- Hydraulic components are of international quality standards & assembled on specially designed compact manifold block for easy maintenance.
Standard Accessories
- Main Drive Motor
- Electric Control Panel
- Operational Console.
- Pre selector switch to adjust rake angle
- Lever operated blade clearance with calibration
- Front sheet support
- Hardened transfer bar mounted on table
- Hold down cylinders
- Four edge HCHCR / HCSR blade Interchangeable & suitable to shear mild and St. Steel
- Manual back gauge
Optional Accessories
- Motorised back gauge with DRO
- NC back gauge with ball screw
- Second squaring arm on left side
- Front support with roller according to required length
- Rear sheet support
- Ball transfer table
- Degree protector for angular cutting
- Stroke counter
- Design with throat depth
- First fill of hydraulic oil
Machine Configuration
| Sr.No. | Cutting Length (MM) | Shearing Capacity Thickness (MM) | Nominal Rake Angle | Rake Angle Range | Stroke Per Min | No. of Holddowns | Holding Force Kgs | Power H.P. | Packing Dimeshion Lxwxh | Approx. Weight KGS. | ||||
| Mild Steel | Saint Less Steel | Min. Rake Angle | Max. Rake Angle | |||||||||||
| Nominal Rake Angle | Max. Rake Angle | Nominal Rake Angle | Max. Rake Angle | |||||||||||
| 1 | 1250 | 4 | 6 | 3 | 4 | 1degree 37′ | 0.5-3 degree | 33 | 17 | 5 | 4000 | 5 | 2000x1550x2050 | 2700 |
| 2 | 1500 | 4 | 6 | 3 | 4 | 1degree 37′ | 0.5-3 degree | 30 | 15 | 8 | 4500 | 5 | 2250x1850x2050 | 3200 |
| 3 | 1500 | 6 | 8 | 4 | 6 | 1degree 45′ | 0.5-3 degree | 24 | 8 | 8 | 6500 | 10 | 2250x1900x2100 | 4000 |
| 4 | 1500 | 8 | 10 | 6 | 8 | 2degree | 0.5-3 degree | 22 | 10 | 8 | 10500 | 15 | 2250x2050x2200 | 5200 |
| 5 | 1500 | 10 | 13 | 8 | 10 | 2 degree | 0.5-3 degree | 20 | 10 | 8 | 10500 | 15 | 2250x2050x2300 | 6000 |
| 6 | 2000 | 4 | 6 | 3 | 4 | 1degree 37′ | 0.5-3 degree | 28 | 13 | 11 | 6200 | 7.5 | 2750x1850x2050 | 3500 |
| 7 | 2000 | 6 | 8 | 4 | 6 | 1degree 45′ | 0.5-3 degree | 22 | 7 | 11 | 6500 | 10 | 2750x1900x2100 | 4300 |
| 8 | 2000 | 8 | 10 | 6 | 8 | 2 degree | 0.5-3 degree | 18 | 8 | 11 | 12000 | 15 | 2750x2050x2200 | 6000 |
| 9 | 2000 | 16 | 20 | 13 | 16 | 2 degree | 0.5-3 degree | 13 | 7 | 11 | 22000 | 25 | 2750x2200x2600 | 12000 |
| 10 | 2500 | 3.15 | 4 | 2 | 3 | 1degree 15′ | 0.5-2 degree | 28 | 13 | 13 | 2500 | 5 | 3200x1850x1950 | 3500 |
| 11 | 2500 | 4 | 6 | 3 | 4 | 1degree 37′ | 0.5-3 degree | 26 | 8 | 13 | 8000 | 7.5 | 3300x2250x2400 | 5000 |
| 12 | 2500 | 6 | 8 | 4 | 6 | 1degree 45′ | 0.5-3 degree | 28 | 8 | 13 | 8500 | 15 | 3300x2250x2500 | 6000 |
| 13 | 2500 | 8 | 10 | 6 | 8 | 2 degree | 0.5-3 degree | 24 | 8 | 13 | 16500 | 20 | 3300x2350x2600 | 7500 |
| 14 | 2500 | 10 | 13 | 8 | 10 | 2 degree | 0.5-3 degree | 24 | 8 | 13 | 17500 | 20 | 3300x2500x2800 | 9000 |
| 15 | 2500 | 13 | 16 | 10 | 13 | 2 degree | 0.5-3 degree | 15 | 10 | 13 | 32000 | 25 | 3350x2600x2800 | 9000 |
| 16 | 2500 | 16 | 20 | 13 | 16 | 2 degree | 0.5-3 degree | 15 | 8 | 13 | 40000 | 30 | 3500x2600x2900 | 15000 |
| 17 | 2500 | 20 | 25 | 16 | 20 | 2 degree | 0.5-3 degree | 15 | 8 | 13 | 48000 | 40 | 3500x2750x3000 | 18000 |
| 18 | 3000 | 3.15 | 4 | 2 | 3 | 1degree 15′ | 0.5-2 degree | 24 | 9 | 15 | 2500 | 5 | 3700x1850x1950 | 4000 |
| 19 | 3000 | 4 | 6 | 3 | 4 | 1degree 37′ | 0.5-3 degree | 24 | 6 | 15 | 10000 | 10 | 3700x2250x2400 | 6000 |
| 20 | 3000 | 6 | 8 | 4 | 6 | 1degree 45′ | 0.5-3 degree | 24 | 6 | 15 | 10800 | 15 | 3800x2250x2500 | 6500 |
| 21 | 3000 | 8 | 10 | 6 | 8 | 2 degree | 0.5-3 degree | 20 | 6 | 15 | 18500 | 20 | 3800x2350x2600 | 9000 |
| 22 | 3000 | 10 | 13 | 8 | 10 | 2 degree | 0.5-3 degree | 20 | 6 | 15 | 20000 | 20 | 3800x2500x2800 | 11500 |
| 23 | 3000 | 13 | 16 | 10 | 13 | 2 degree | 0.5-3 degree | 12 | 6 | 15 | 37000 | 25 | 3800x2600x2800 | 12000 |
| 24 | 3000 | 16 | 20 | 13 | 16 | 2 degree | 0.5-3 degree | 12 | 6 | 16 | 43500 | 30 | 4000x2600x2900 | 17000 |
| 25 | 3000 | 20 | 25 | 16 | 20 | 2 degree | 0.5-3 degree | 12 | 6 | 16 | 52000 | 40 | 4000x2750x3000 | 20000 |
| 26 | 4000 | 4 | 6 | 3 | 4 | 1degree 45′ | 0.5-3 degree | 22 | 6 | 20 | 12000 | 10 | 4500x2250x2400 | 8100 |
| 27 | 4000 | 6 | 8 | 4 | 6 | 2degree | 0.5-3 degree | 24 | 6 | 20 | 13600 | 20 | 4800x2250x2500 | 8200 |
| 28 | 4000 | 8 | 10 | 6 | 8 | 2 degree | 0.5-3 degree | 20 | 8 | 20 | 23000 | 25 | 4800x2350x2600 | 12500 |
| 29 | 4000 | 10 | 13 | 8 | 10 | 2 degree | 0.5-3 degree | 18 | 6 | 20 | 25000 | 30 | 4800x2500x2800 | 15000 |
| 30 | 4000 | 13 | 16 | 10 | 13 | 2 degree | 0.5-3 degree | 10 | 4 | 20 | 22000 | 30 | 4850x2200x2800 | 15500 |
| 31 | 4000 | 16 | 20 | 13 | 16 | 2 degree | 0.5-3 degree | 10 | 4 | 20 | 30000 | 30 | 5100x2750x2900 | 20000 |
| 32 | 4000 | 20 | 25 | 16 | 20 | 2 degree | 0.5-3 degree | 10 | 4 | 20 | 30000 | 50 | 5100x2800x3000 | 24000 |
