Project description
‘ANASUYA’ presents to you a range of most technically advanced IRON WORKER with all latest features as per international standards.
‘ANASUYA’- HYDRAUILC IRON WORKER are designed & built to cut various material with different sections in easy & efficient manner, The machine is provided with different operation station in order to meet wide variety of cuttings; Sections like angle, channel, flat & plate can be cut very accurately & precisely. Moreover machine is also having one station where differing pressing operation like punching, blanking, piercing & bending can be done.
Standard Accessories
- BLADE FOR ANGLE CUTTING, CHANNEL CUTTING, FLAT CUTTING & NOTCHING
- FINE STROKE ADJUSTMENT ROD WITH LIMIT SWITCH
- HYDRAULIC JOB CLAMPING DEVICE
- ELECTRIC CONTROL PANEL
- PAIR OF FOOT SWITCH
- MANUAL BACK GUAGE
Optional Accessories
- BLADE FOR ROUND BAR, SQUARE/BAR CUTTING, I-BEAM SECTION CUTTING
- FIRST FILL OF HYDRAULIC OIL
- BACK GUAGE WITH ELE. SWITCH
- LIGHT

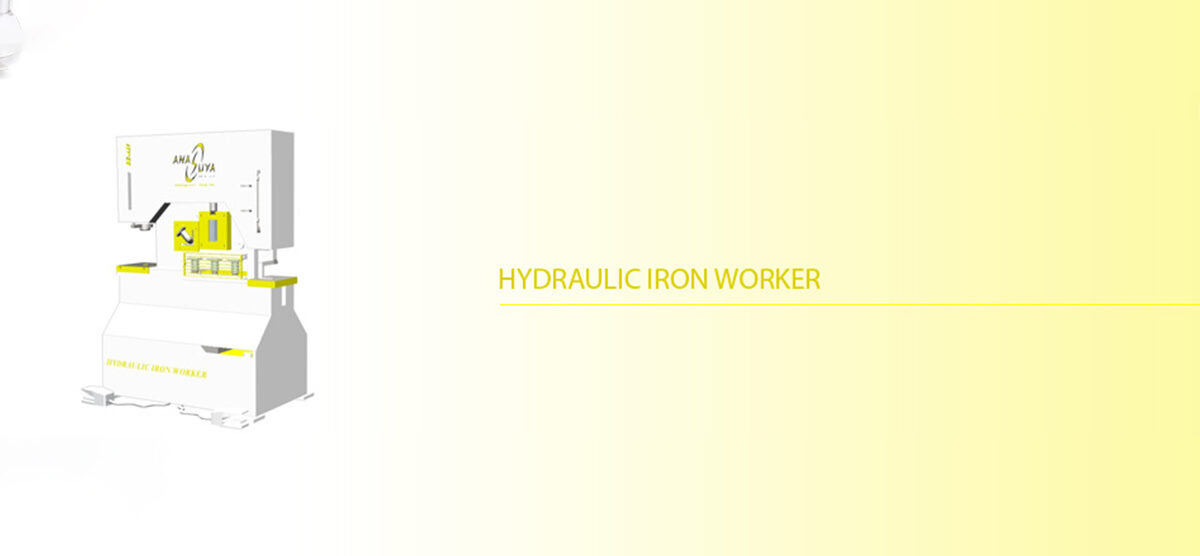

Hydraulic Iron Worker
| Models | AIW – 1 | AIW – 2 | AIW – 3 |
| TONNAGE | 60-Ton | 80-Ton | 120-Ton |
| CHANNEL / I-BEAM | 100 x 50 | 150 x 75 | 200 x 100 |
| ANGLE SHEAR | 100 x 100 x 06 | 100 x 100 x 10 | 130 x 130 x 08 |
| ROUND / SQUARE SHEAR | 38 | 45 | 60 |
| FLAT BAR SHEAR | 300 x 12 | 430 x 15 | 530 x 18 |
| PUNCHING | DIA 40 x 06 | DIA 40 x 06 | DIA 50 x 08 |
| NOTCHING | 50 x 40 x 05 | 60 x 40 x 06 | 80 x 60 x 06 |
| Motor H.P. | 5 / 1440 | 7.5 x 1440 | 15 / 1440 |
| WIEGHT appr. | 2750 | 3250 | 4000 |
